CARATTERISTICHE HARDWARE
Interfaccia:
- 1 10/100Mbps LAN Port
- 1 10/100Mbps LAN/WAN Port,
- 1 Micro SIM Card Slot
Tasto: WPS/Reset Button
External Power Supply(EU): 9V/0.85A
Dimensioni ( L x P x A ): 6.06×4.49×1.42 in ( 154×114×36 mm)
Antenna: 2 Detachable External 4G LTE Antennas

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11b/g/n
Frequenza: 2.4 GHz
Signal rate: 300 Mbps
Sensibilità di ricezione:
- 11g 54M: -74 dBm
- 11n HT20: -71 dBm
- 11n HT40: -68 dBm
Potenza di trasmissione: < 20 dBm (2.4 GHz)
Funzionalità wireless:
- Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover: Yes
Sicurezza wireless: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Tipo di rete:
- 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
- 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

CARATTERISTICHE SOFTWARE
Sicurezza: IPv4 SPI Firewall, IP and MAC Address Binding
Modalità operative: 3G/4G Router, Wireless Router
Tipo WAN: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Gestione: Local Management, Remote Management
DHCP: Server, DHCP Client List, Address Reservation
Port forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
Protocolli: IPv4, IPv6
Rete ospiti: 2.4 GHz Guest Network
Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

ALTRO
Certificazione: CE, RoHS
Contenuto della confezione:

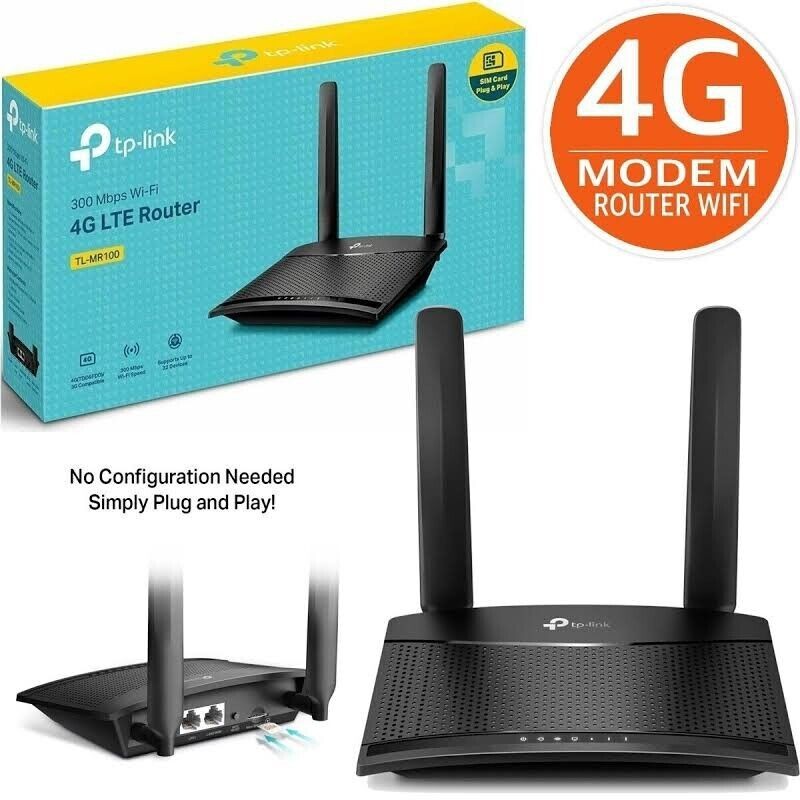

- 300 Mbps Wireless N 4G LTE TL-MR100
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
Requirements:
- Microsoft Windows 98SE/NT/2000/XP/Vista&TRADE;/7/8/8.1/10, MAC OS,
- NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
- Java-enabled browser
- Micro SIM Card
Ambiente:
- Operating Temperature: 0?~40? (32? ~104?)
- Storage Temperature: -40?~70? (-40? ~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
